MoveOutput
๐ KR
Description
This is a component that configures ABB Move instructions (MoveJDO, MoveLDO, MoveJGO, MoveLGO, MoveJAO, MoveLAO) accompanied by digital, group, and analog output signals.
| Input
| Name | Type | Description |
|---|---|---|
| RobTargets | RobTarget | Motion target position. Connects to the output of the RobTarget or Positioner RobTarget component. |
| Signal | String | The signal name to apply the motion to |
| DO Value | Boolean | Digital output value |
| Required Parameter
| Name | Type | Description |
|---|---|---|

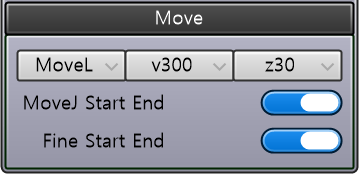

| Type/Speed/Zone | String | Motion type, speed, zone radius |
| MoveJ Start End | Toggle | โข TRUE: Apply MoveJ to the first and last targets โข FALSE: Apply the configured motion type to all targets |
| Fine Start End | Toggle | โข TRUE: Apply fine zone to the first and last targets โข FALSE: Apply the configured zone value to all targets |
| Output
| Name | Type | Description |
|---|---|---|
| Instruction | Instruction | Generated ABB instruction. Passed to the Instructions input of the Core component. |
